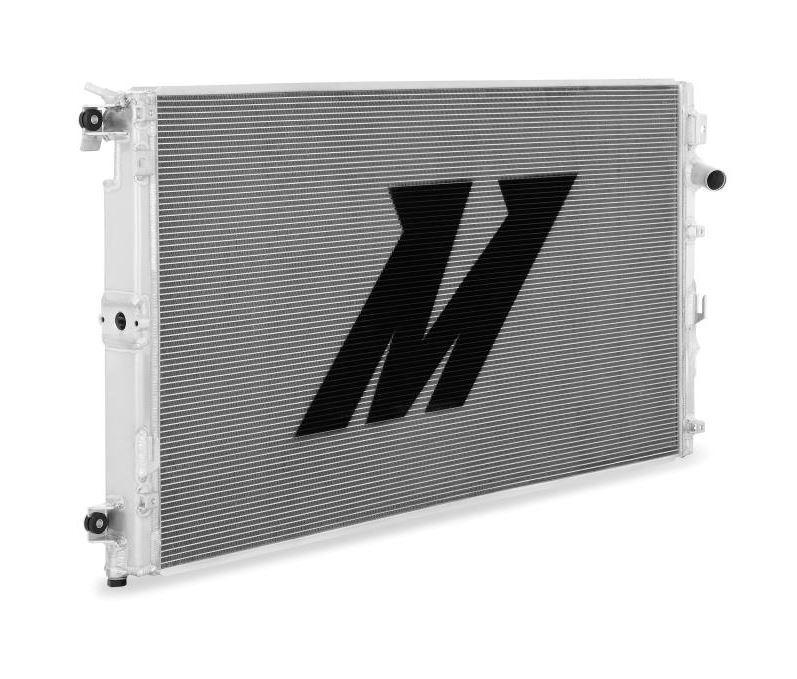

MMRAD-F2D-11S Mishimoto Aluminum Secondary Radiator - Ford 2011-2016

SKU: MMRAD-F2D-11S

Mftr. Part#: MMRAD-F2D-11S

UPC: 748354028171

Manufacturer: Mishimoto

Be the first to review this product

The 2011-2016 Ford 6.7L Powerstroke is plagued with radiator and cooling issues, the Mishimoto Aluminum Secondary Radiator works to increase durability & reliability in your cooling system. The 6.7L Powerstroke comes with 2 separate cooling systems, this radiator is your secondary which works to maintain ideal temperatures for the transmission cooler, egr cooler, fuel cooler and the liquid to air charge cooler.

PRODUCT DETAILS (click to expand)

Mftr. Part#	MMRAD-F2D-11S
UPC	748354028171
Weight (lbs.):	57.00 lbs.
Dimensions:	9.80" x 52.00" x 33.00"

PRODUCT SPECS (click to expand)

Attribute name	Attribute value
Product Type	Radiator
Truck Family	Ford 6.7L 2011-2016
Truck Type/Model	Ford
Brand	Mishimoto

$1,934.43

Qty:

Description

The Mishimoto secondary radiator is constructed from high quality tig-welded aluminum for reliability and durability that helps keep your truck on the road. This secondary radiator keeps factory fitment, fitting both the factory radiator and Mishimoto’s primary radiator. During testing, Mishimoto saw coolant temperature reduction of at least 7°F and a 7° reduction in charge air temperatures. As with all Mishimoto radiators this is backed by lifetime warranty.

Features

Direct fit for the 6.7L Powerstroke, 2011-2016
Reduces coolant temperature
Reduces charge air cooler temperature
27% Increase in fin area
19% Thicker core than factory
Includes magnetic oil drain plug
Mishimoto lifetime warranty

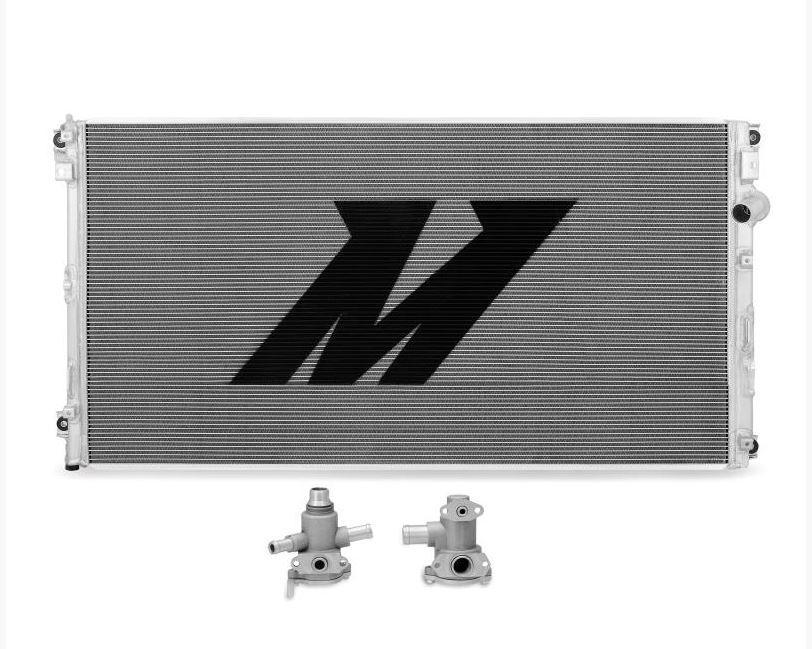

Purchase Includes

Mishimoto radiator

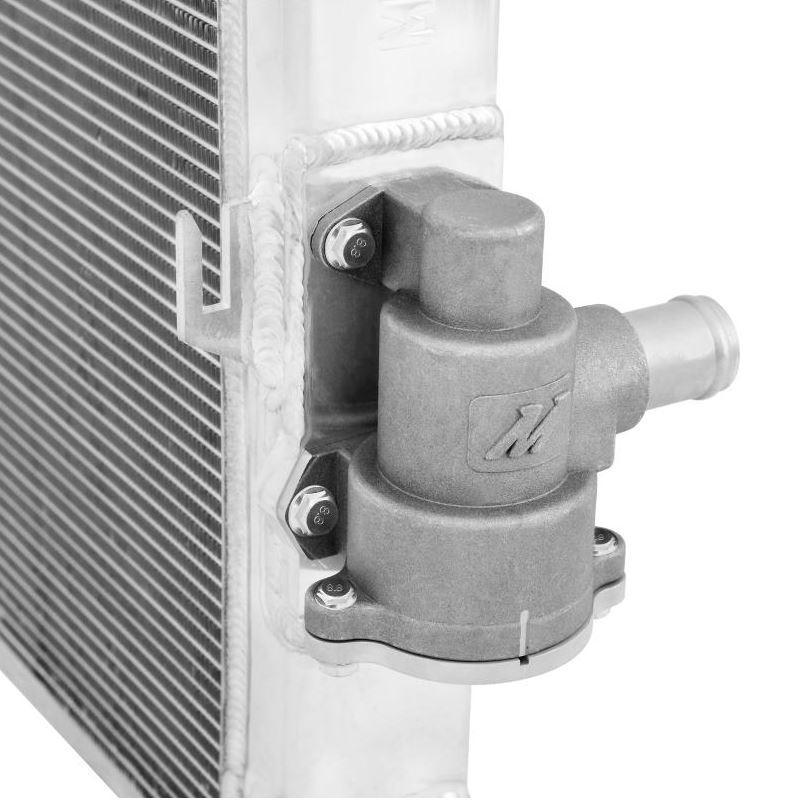

Cast thermostat housings
Magnetic drain plug w/ dowty oil seal
Rubber bushings & metal collars
Hardware packs

Specifications

Overall Height: 22"
Drain Plug Thread Size: (M12) x 1.5
Overall Length: 48"
Inlet/Outlet Type: Quick Disconnect
Core Length: 39.4"
Core Height: 21"
Core Thickness: 1.96"
